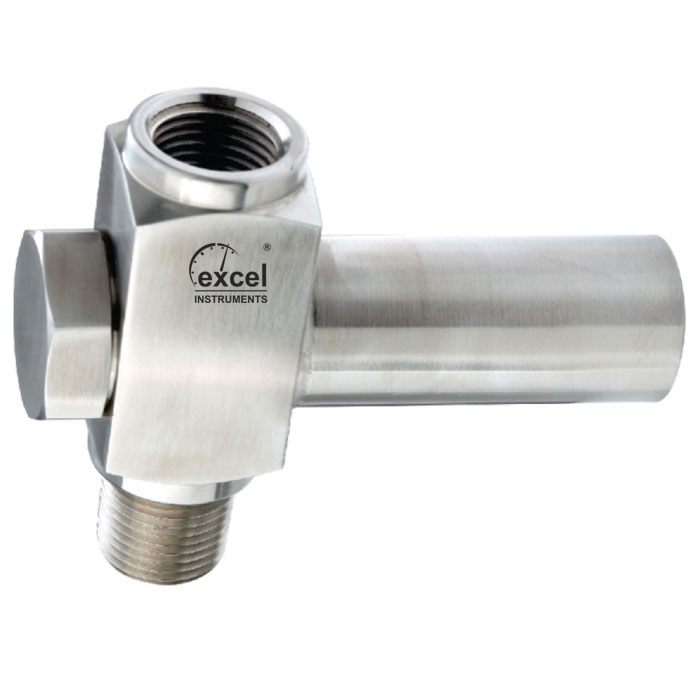

CLT

Cooling Tower
Stainless Steel Construction

Special Features:-

  • Stainless Steel Construction
  • Suitable For Clean Air
  • Gases And Non Crystallized  Liquid

Application:-

  • Cooling Tower Used Mainly To Protect Pressure Instruments , Gauges ,Switches And Transmitters Directly Coming In Contacting With High Temperature Process Fluids Or Vaporous Filled In Condensation Fluids.
  • These Are Mounted Between Process And Pressure Instrument
  • These Are Mounted Between Process And Pressure Instrument.
  • They Reduce Process Pulsation ,Act As Heat Dispenser  And Generate Cooling Effect To Save Instrument From  Working At Dangerous Temperature
Download Brochure

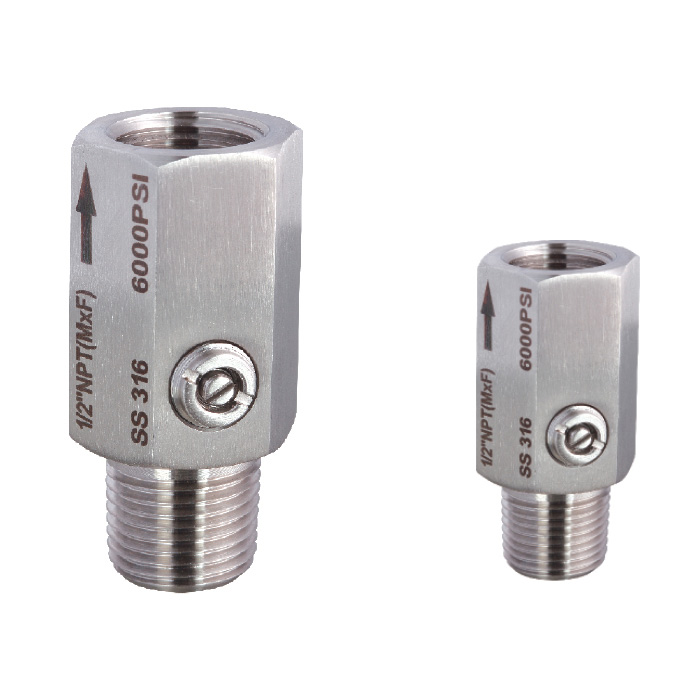

GS

Gauge Saver (Overload Protector)

Special Features:

  • Nominal Pressure Up To 400kg/Cm2
  • 7 Different Adjustable  Ranges
  • Over Pressure Up to 600 Kg/Cm2
  • Below/Diaphragm & Piston Type Model Available

Application:

  • Designed To Protect Pressure Equipment  From Over Pressure Exciding The Specified Pressure Range By Sudden
  • This Device Blocks The Higher Pressure exceeding The Allowed Value Until It Comes Back To Normal, When Pressure Become Normal
  • Hence This Device Safe Guard The Pressure Equipments Gauges, Switches Or Transmitter By Blocking Extra High Features
  • Widely Use In Mechanical Engineering And Plant Construction Power Station, Mining ,Environmental Technology chemical And Petro Chemical On Shore & Off Shore
Download Brochure

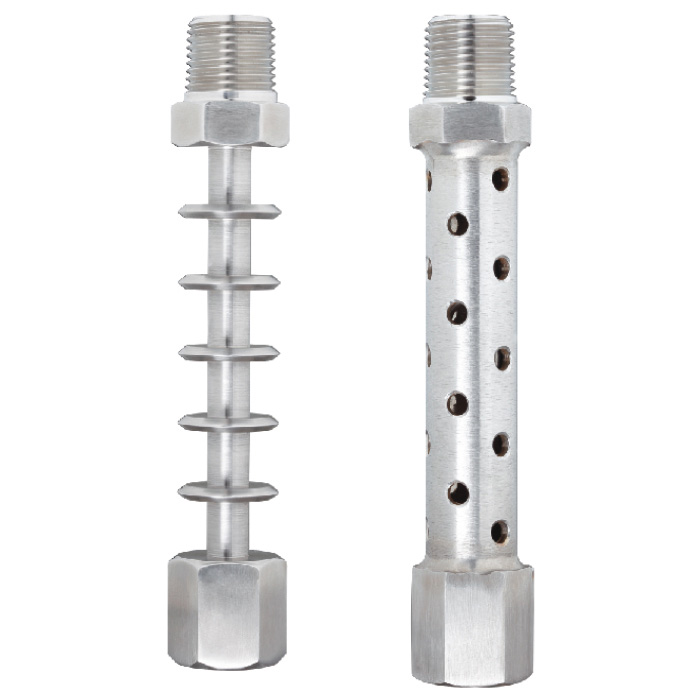

SN

Pulsation Dampener (Snubber)
Adjustable type

Features:

  • Designed to reduce dampening effect of process fluid
  • Working pressure up to 400 kg/cm 2
  • Working temperature up to 120°C
  • All stainless steel construction
  • For corrosive media & environment

Application:

  • This device can increase the service life of pressure instruments in critical conditions found at reciprocating
  • Pumps
  • Hydraulic machines
  • Compressors
  • Process plants
  • Clean air,
  • Non crystallized liquids
Download Brochure

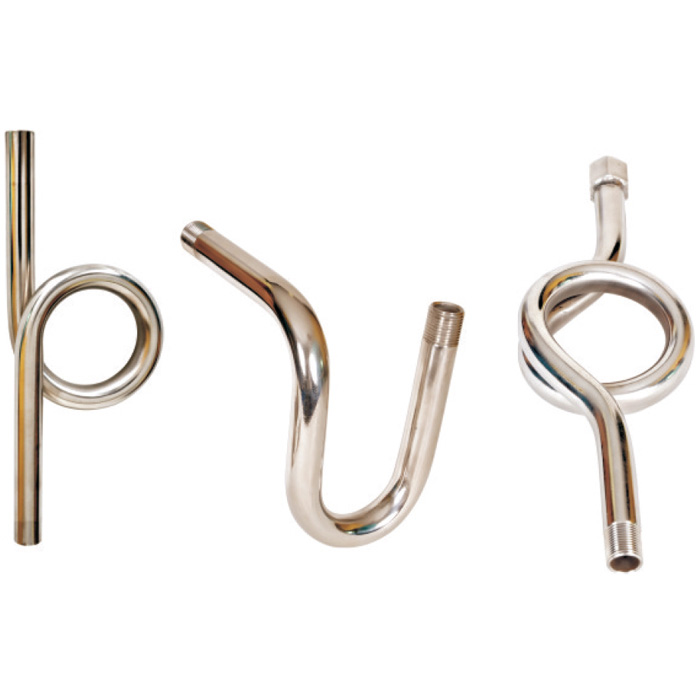

SP

Siphon
All stainless steel

Features:

  • Pigtail, Coil and “U” type shapes
  • Maximum temperature up to 400°C
  • Nominal pressure up to 160 kg/cm²
  • TIG welded & hydro tested
  • Made with seamless pipes

Application:

  • Siphons are used mainly to protect pressure instruments, gauges, switches and transmitters directly coming in contact with high temperature process fluids or vapours
  • These are mounted between process and pressure instrument
  • They reduce process pulsation and generate cooling effect to save the instrument
