Differential Pressure Gauges

Download Datasheet pdf-icon Send Inquiry

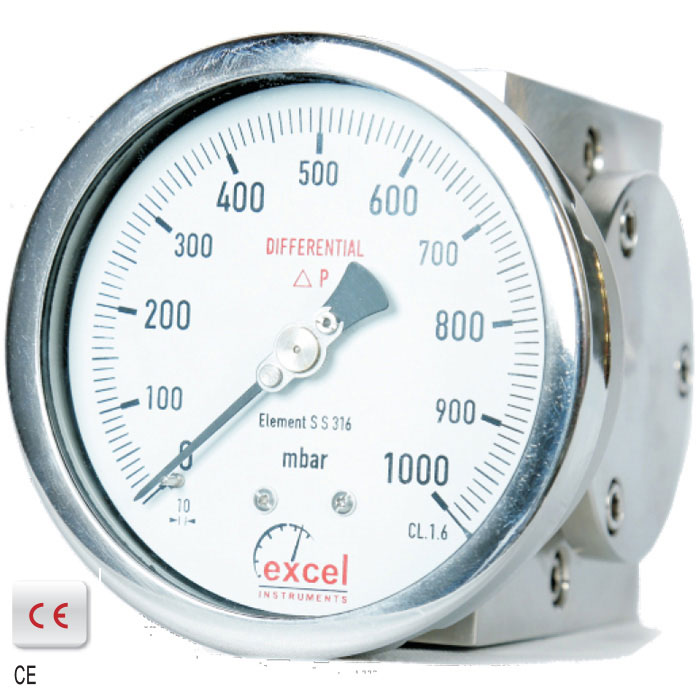

Differential Pressure Gauge Single Diaphragm Type

Special Features
  • CE approved electrical contacts
  • Case & measuring system in SS
  • Dry or liquid filled
  • Standard followed in general EN 837 - 3
Application
  • Suitable for clean air
  • Compatible gases
  • Fertilizer
  • Petrochemicals
  • Pharmaceutical
  • Power
  • Cement
  • Sugar
  • Food & beverages
  • Pulp
  • Paper
  • Allied process industries
Download Datasheet pdf-icon Send Inquiry

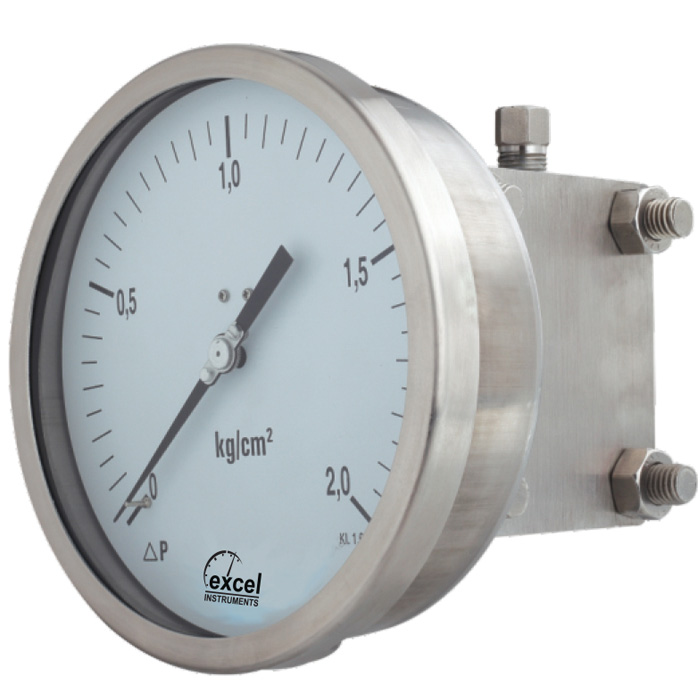

Differential Pressure Gauge Double Diaphragm Type

Special Features
  • CE Case & measuring system in SS
  • Static pressure up to 200 kg/cm² (on request)
  • Dry or liquid filled
  • Accuracy upto 1.6% F. S.
  • Standard followed in general EN 837-3
  • approved electrical contacts
Application
  • Chemicals
  • Refinery
  • Nuclear
  • Aerospace
  • Fertilizer
  • Petrochemicals
  • Pharmaceutical
  • Power
  • Cement
  • Sugar
  • Food & Beverages
  • Pulp
  • Paper & allied Process Industries
Download Datasheet pdf-icon Send Inquiry

DP1

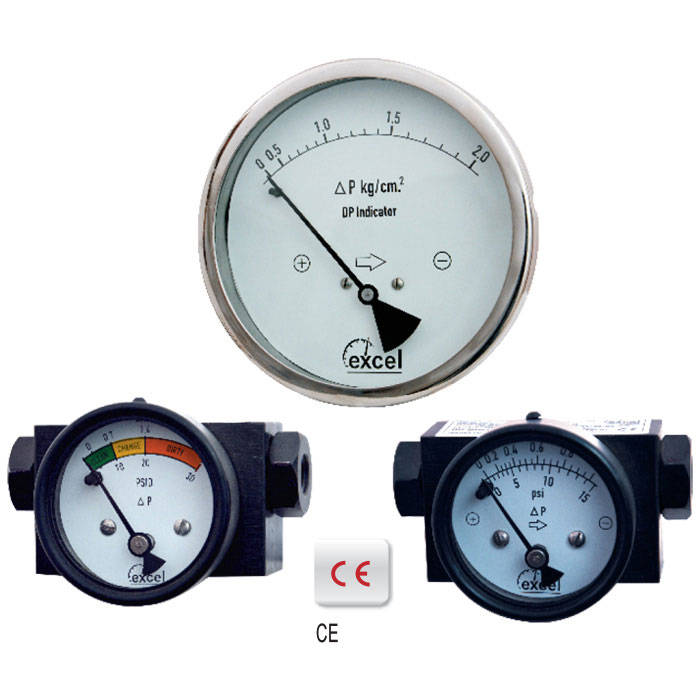

Differential Pressure Gauge Piston Operated

Special Features
  • Simple and compact design.
  • High operating pressure up to 400 bars. (700 bar on Request)
  • Over pressure safe from either side to maximum working pressure.
  • Indicating mechanism isolated form pressue chamber.
  • Suitable for Air/ Gas medi.
Application
  • Filters
  • Hydraulic systems
  • Water treatment plants
  • Chemcial plants
  • Natural gas processing
  • Heat exchanger
  • Gasoling /diesel engine filters
  • Pumps
  • Valves
  • Compressors
Download Datasheet pdf-icon Send Inquiry

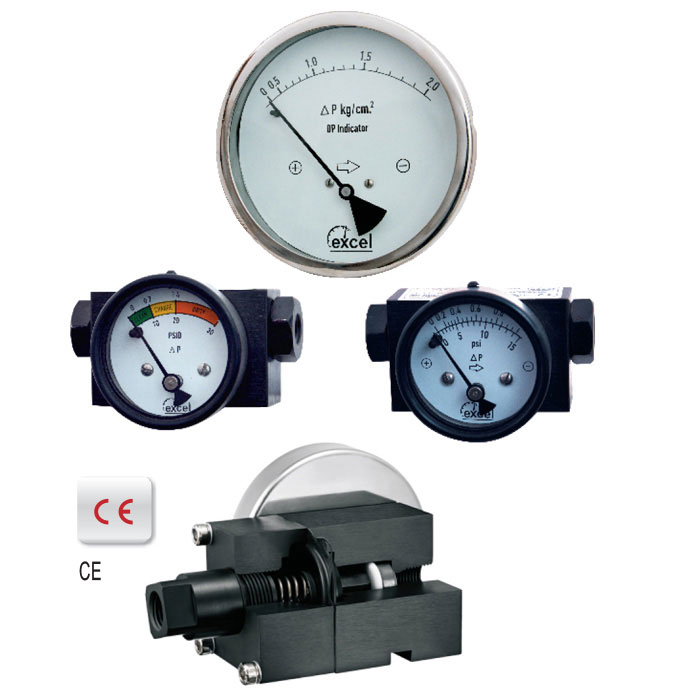

Differential Pressure Gauge Piston With Diaphragm Operated

Special Features
  • Simple and compact design.
  • High operating pressure up to 400 bar. (700 bar On Request)
  • Over pressure safe from either side to maximum working pressure.
  • Indicating mechanism isolated from pressure chamber.
  • Suitable for Air / Gas media.
Application
  • Filters
  • Hydraulic systems
  • Water treatment plants
  • Chemical plants
  • Natural gas processing
  • Heat exchanger
  • Gasoline / diesel engine filters
  • Pumps
  • Valves
  • Compressors
Download Datasheet pdf-icon Send Inquiry

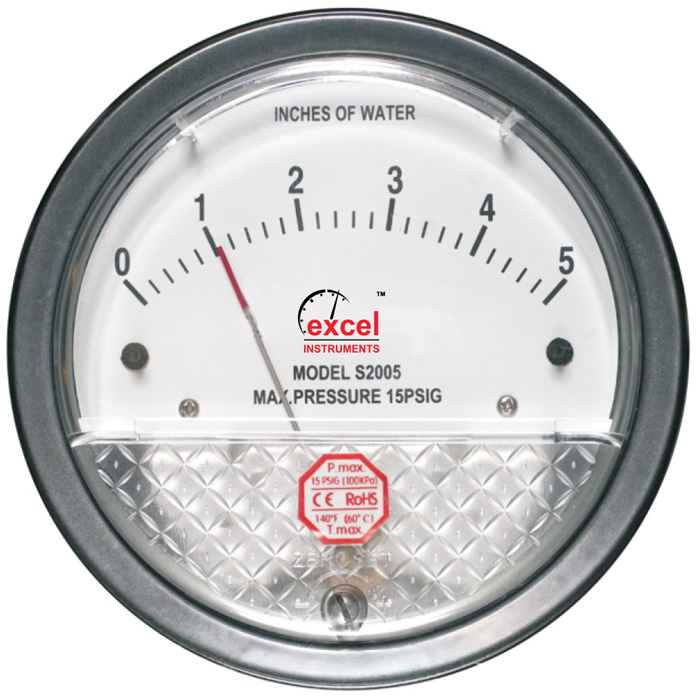

E-2000

Low Pressure Differential Pressure Gauge

The Series E2000 is a low cost, diaphragm operated, differential pressure gauge. The S2000 can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.

Special Features
  • Mounts in In dustry
  • Standard H oles
  • Accuracy 2%
  • Die C ast A luminum
  • Housing
Application
  • Filter S tatus
  • Duct S tatic P ressure
  • Clean R oom P ressure
  • Building P ressure
  • Fan and Blower Pressure
  • Paint B ooths
  • Dust C ollectors
  • Glove B ox P ressure
  • Bubbler S ystems
  • Cabinet P urging
