Manifold Valves

Download Datasheet pdf-icon Send Inquiry

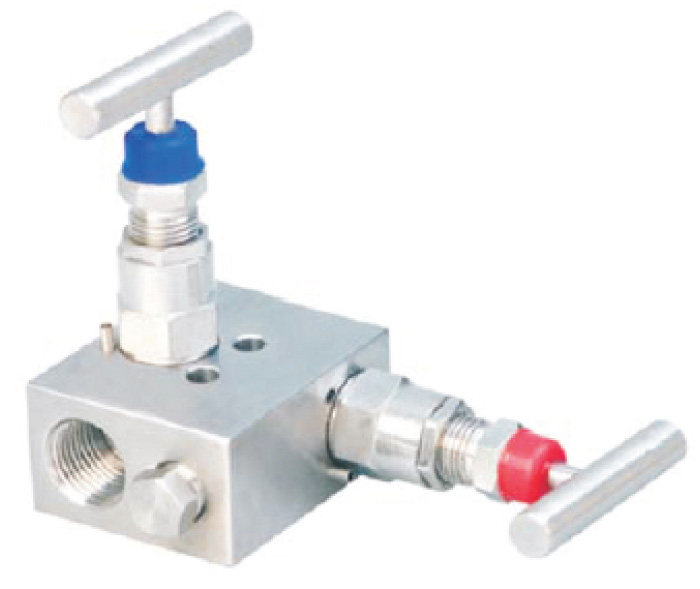

2VMR

2 Valve Manifold Remote mount (Pipe to Pipe)

With threaded vertical port inlet and female outlet. The vent/test connection is positioned on the front side. The venting bonnet is positioned on the right hand side and the isolating bonnet on left hand side.

Download Datasheet pdf-icon Send Inquiry

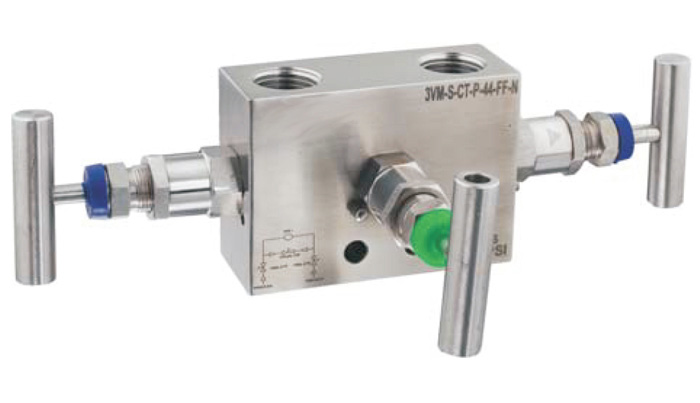

3VMR

2 Valve Manifold Remote mount (Pipe to Pipe)

With threaded vertical port inlets and outlets. The isolating bonnets are positioned on the left and right hand side and the equalizing bonnet is positioned on the front. This manifold is specially designed as miniature valve to be remote mounted.

Download Datasheet pdf-icon Send Inquiry

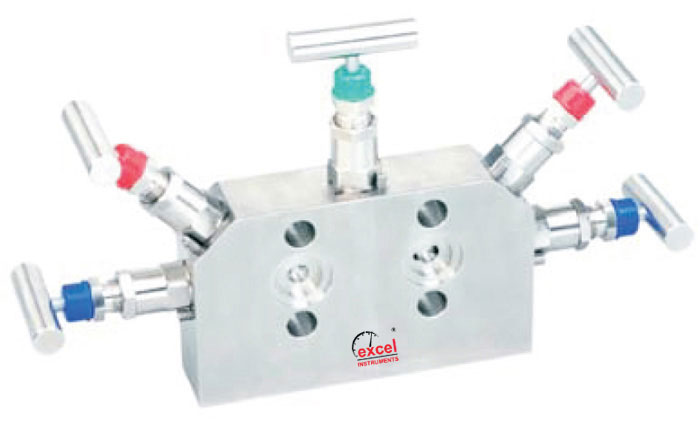

5V45

5 Valve Manifold Direct Mounting (Pipe To Flange)

Coplanar Mounting Five Valve Manifold with Drain Plugs. This Manifold Has Two Isolating Valves ,One Equalizer Valve & Two Vent Valve. When Assembled To Transmitter Has The Advantage Of Compact Size With Easy Operation With Minimum Space. The Direct Mounting Facility To The Base Of The Differential Pressure Transmitter Re Salt In Less Lockage Points And More Accurate Measurement.
The Model Mainly Suitable For Transmitter.
The Manifold Dimensions Illustrated For Standard 54 mm instrument Are Also Available For Other Center On Request Center.
