Diaphragm Sealed & Gauge

Download Datasheet pdf-icon Send Inquiry

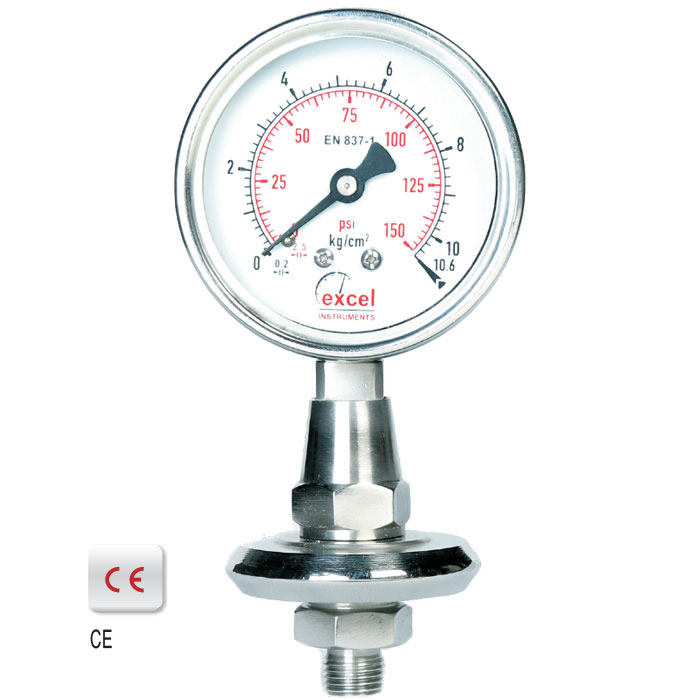

All SS Pressure Gauge Compact Diaphragm Type (50 mm, 63 mm & 100mm)

Special Features
  • Stainless steel case & measuring system
  • Dry or liquid filled
  • Diaphragm seal integrally built with gauge.
  • Reduces the effect of vibration / pulsation
  • Standard followed en 837-3
Application
  • Diaphragm seals are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive, viscous, sedimentous and / or with a high temperature.
  • Especially designed for Low Cost
Download Datasheet pdf-icon Send Inquiry

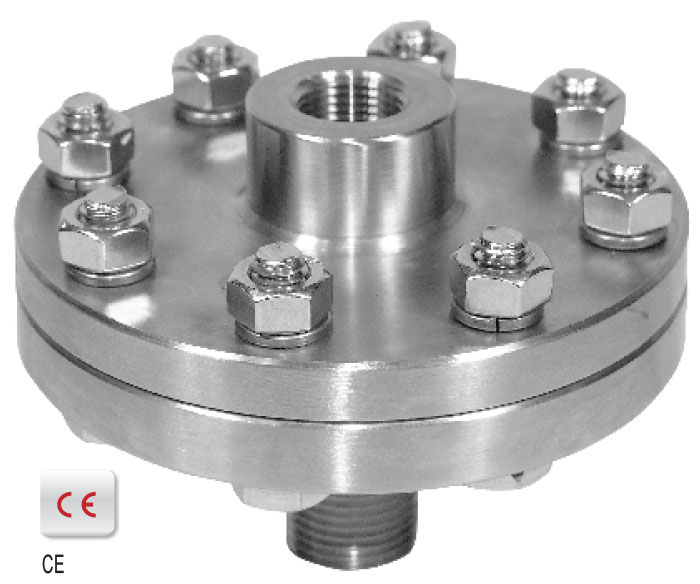

Diaphragm Sealed Direct Coupled type

Special Features
  • Robust two piece design
  • The diaphragm is welded to the body to ensure separation of the filling fluid from the process medium
  • All SS construction
Application
  • Diaphragm seals are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive, viscous, sedimentous and / or with a high temperature.
Download Datasheet pdf-icon Send Inquiry

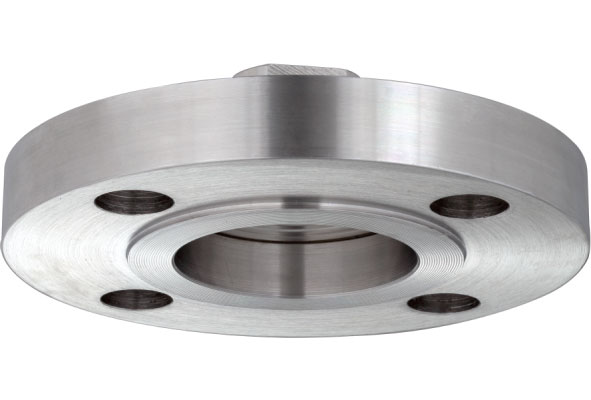

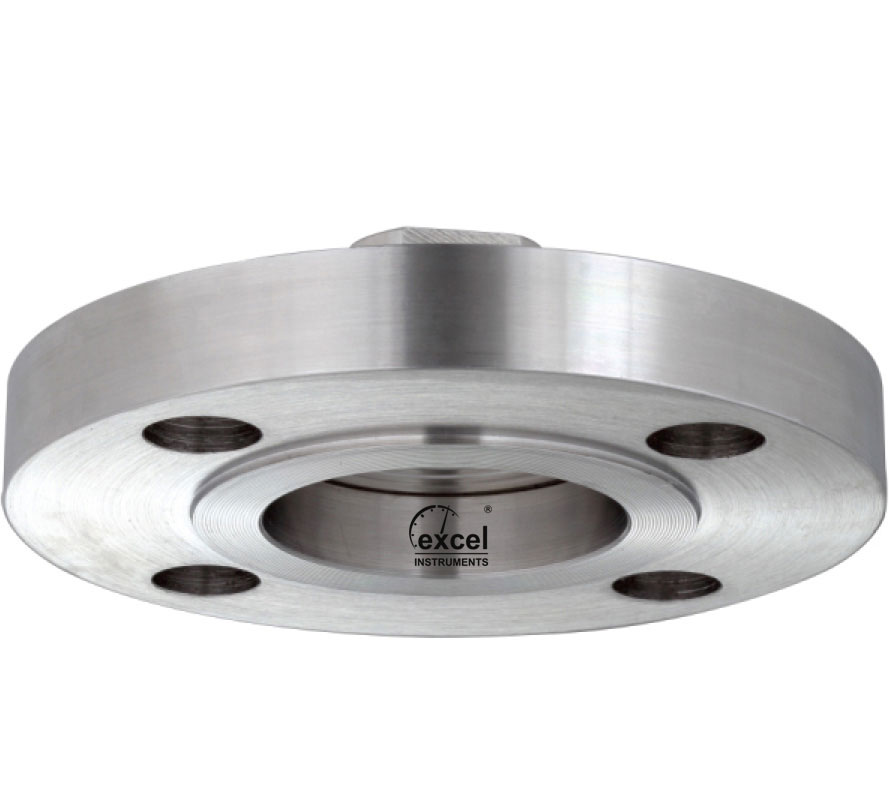

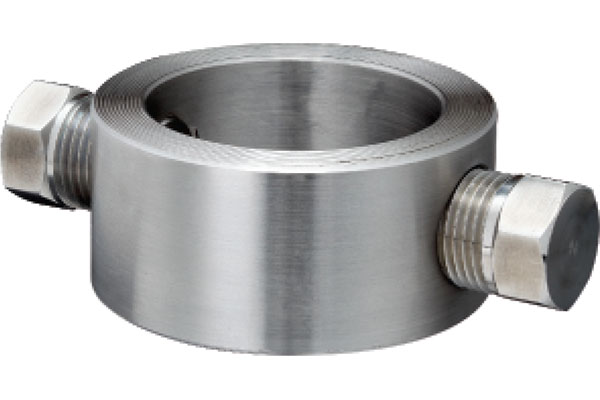

Diaphragm Sealed Direct Flush Flanged

Special Features
  • Welded diaphragm
  • Easy flushing (through flushing ring)
  • Most suitable for slurry, corrosive & high viscous service
  • Flushing ring , flange & diaphragm are available in various type of SS & exotic materials.
Application
  • Diaphragm Seals Are Provided In The Instruments Like Pressure Gauges, Switches, Transmitters In Order To Isolate The Sensing Element From The Main Service Due To Its Corrosive, Viscous And Sedimented Nature And To Avoid Clogging And Solidification. These Kind Of Seals Are Widely Used In The Viscous & Corrosive Services Where Flushing Is Required Periodically & Frequently.
Download Datasheet pdf-icon Send Inquiry

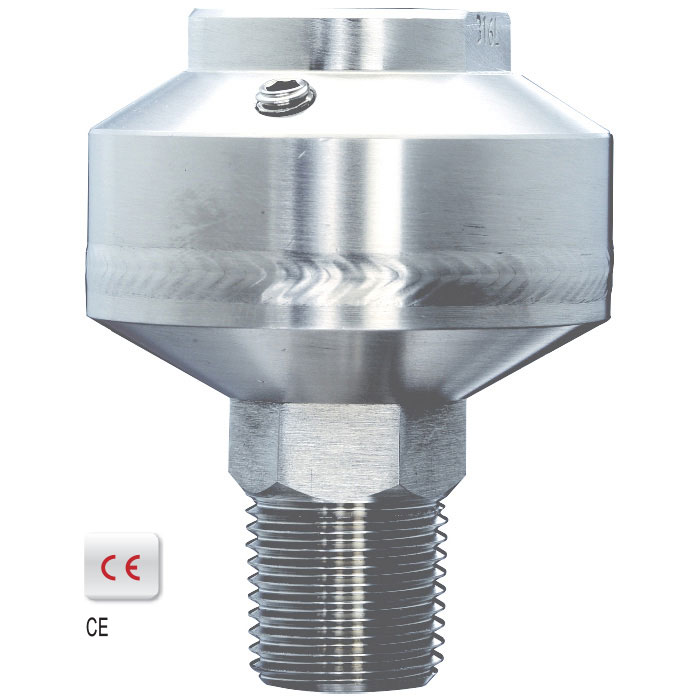

Diaphragm Seal Heavy Duty Mini Sealed

Special Features
  • All AISI 316 SS construction
  • Light weight
  • Economical
  • Ideal choice for high pressure
  • The diaphragm is welded to the body to ensure separation of the filling fluid from the process medium
Application
  • Diaphragm seals are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive, viscous, sedimentous and / or with a high temperature
Download Datasheet pdf-icon Send Inquiry

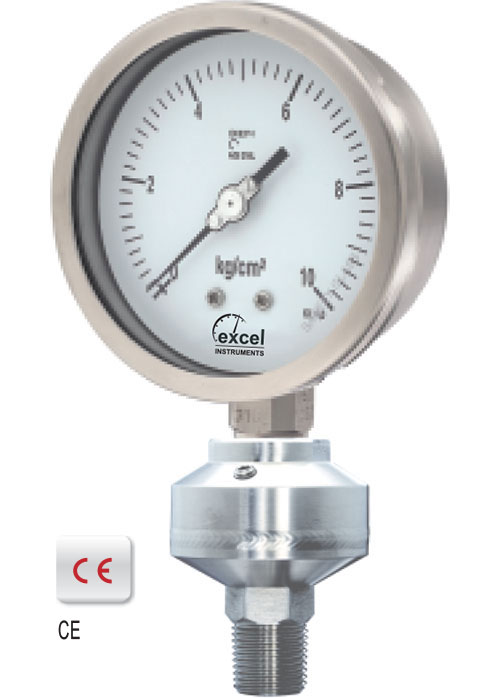

All Ss Pressure Gauge Threeded Diaphragam Seals

Special Features
  • External  zero adjustment(optional)
  • Stainless steel  case and measuring  system
  • Socket directly welded to case
  • Dey and liquid filled version
  • Standard followed EN 837-3(for ns 100, 150)
  • CE marking (as per PED 97/23/EC (for ns 100mm &150mm)
  • The diaphragm is welded to the body to ensure sepration of the filling fluid from the process medium
Application
  • Diaphragm seales are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive,viscous,sedimentous or with a high temperature
  • Chemical and petrochemical industries
  • For aggressive hot corrosive,environmentally,hazardous or toxic media
  • Food and beverages
  • Pharmaceutical
  • Process industry
Download Datasheet pdf-icon Send Inquiry

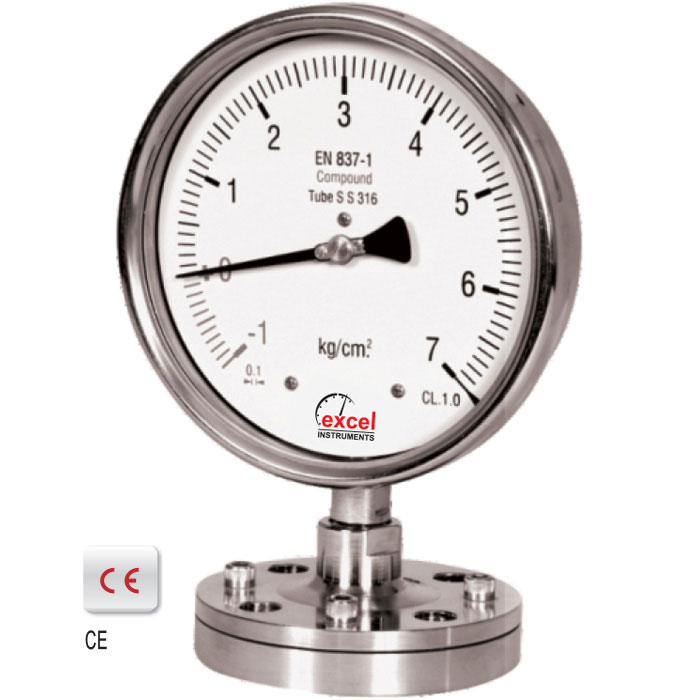

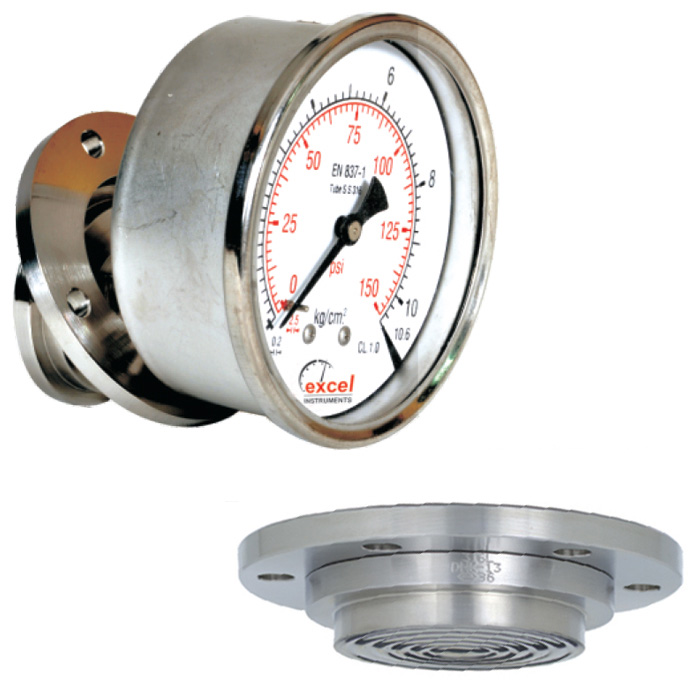

All Ss Pressure Gauge With direct flange insert type

Special Features
  • External  zero adjustment(optional)
  • Stainless steel  case and measuring  system
  • Socket directly welded to case
  • Dry and liquid filled version
  • Standard followed EN 837-3(for ns 100, 150)
  • CE marking (as per PED 97/23/EC (for ns 100mm &150mm)
  • The diaphragm is welded to the body to ensure sepration of the filling fluid from the process medium
Application
  • Diaphragm seales are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive,viscous,sedimentous or with a high temperature
  • Chemical and petrochemical industries
  • For aggressive hot corrosive,environmentally,hazardous or toxic media
  • Food and beverages
  • Pharmaceutical
  • Process industry
Download Datasheet pdf-icon Send Inquiry

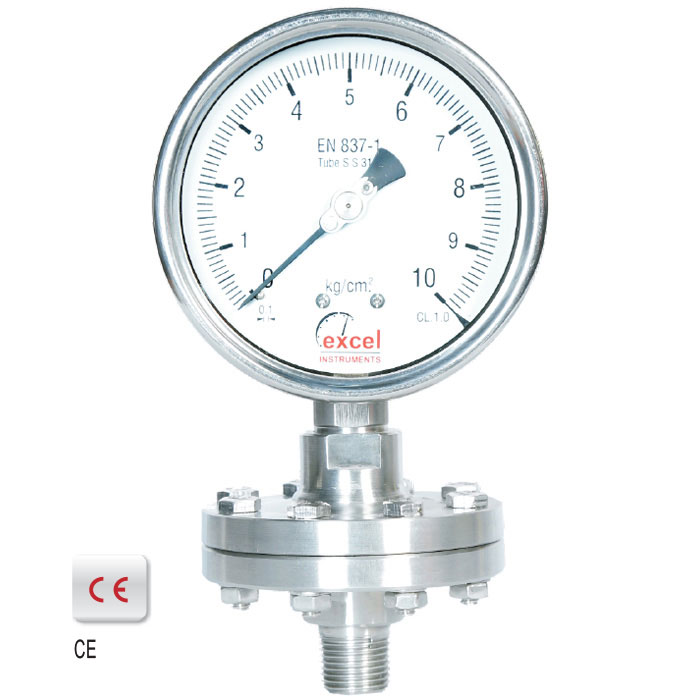

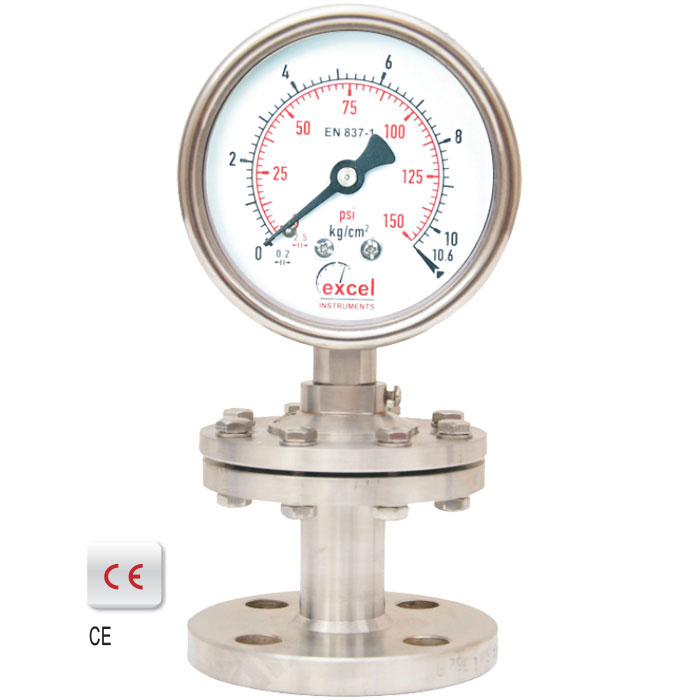

All Ss Diaphragm Sealed Pressure Gauge With Direct Coupled ‘I’ Section Flenge Type

Special Features
  • External  zero adjustment(optional)
  • Stainless steel  case and measuring  system
  • Socket directly welded to case
  • Dry and liquid filled version
  • Standard followed EN 837-3(for ns 100, 150)
  • CE marking (as per PED 97/23/EC (for ns 100mm &150mm)
  • The diaphragm is welded to the body to ensure sepration of the filling fluid from the process medium
Application
  • Diaphragm seales are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive,viscous,sedimentous or with a high temperature
  • Chemical and petrochemical industries
  • For aggressive hot corrosive, environmentally, hazardous or toxic media
  • Food and beverages
  • Pharmaceutical
  • Process industry
Download Datasheet pdf-icon Send Inquiry

Diaphragm Seals For Pulp And Paper Industry

Special Features
  • Ideal  Pulp And Paper Industry
  • Laser Welded Pulp Diaphragm
  • Continious Duty
  • Easy To Clean
  • Availble With Anti Vibration Spring
  • For Vertical Instalation Also With L-Bow 90 Or L-Bow 90
Application
  • Chemical Pulp Manufacture
  • Recovered /Recycle Paper Treatment
  • For Highly Viscous,Aggressive Or Hardning Media
Download Datasheet pdf-icon Send Inquiry

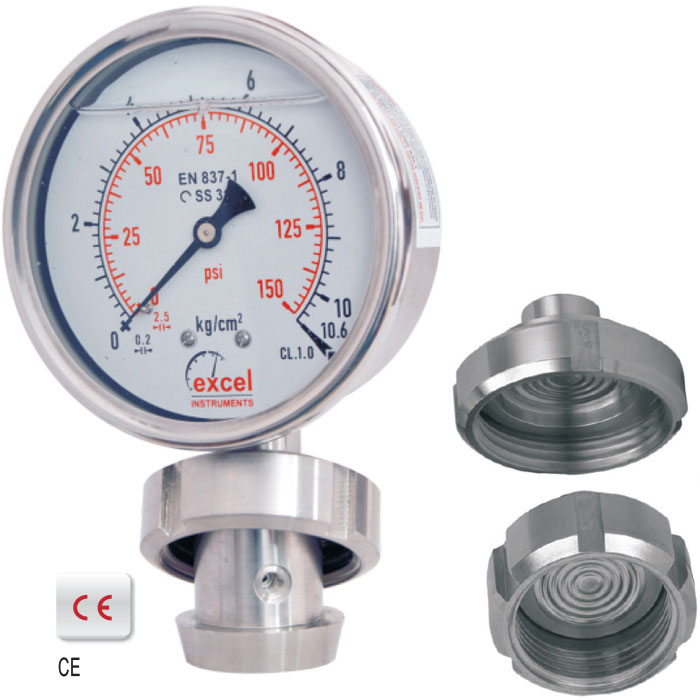

All SS Diaphragm Seals Pressure Gauge Sanitary Process Connection (SMS Threaded)

Special Features
  • Stainless Steel Case And Measuring System
  • Measure Welded Diaphragm
  • Dry And Liquid Filled Version
  • Diaphragm Seal Integrally Built With Gauge
  • Reduce The Effect Of Vibration
  • Polished Diaphragm Provides Best Hygiene Factor
  • Standard Followed En 837-3
Application
  • Especially Design For sanitary Application
  • Pharmaceutical
  • Paint Industry
  • Bacterial And Fungal Accumulates Which  Contaminate The Process Are  Eliminated
  • The Mirror Finishing Of Components Assures The Best Hygiene
Download Datasheet pdf-icon Send Inquiry

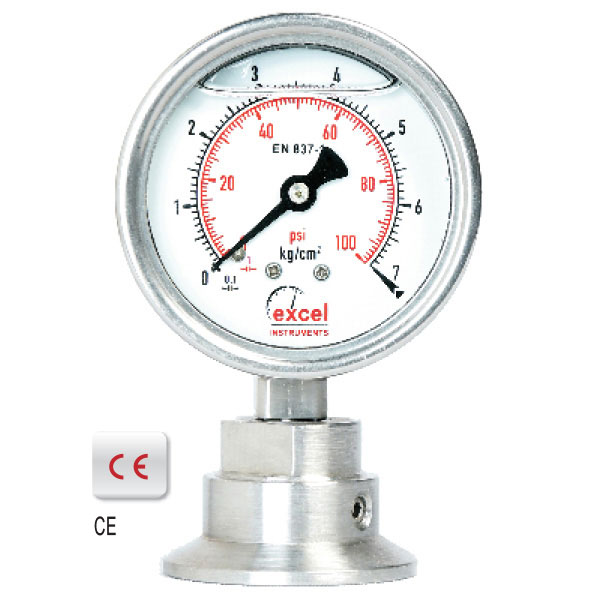

All Ss Diaphragm Sealed Pressure Gauge Sanitary Process Connection (Tc Ends)

Special Features
  • Stainless steel  case and measuring  system
  • Measure welded diaphragm
  • Dry  and liquid filled version
  • diaphragm seal integrally built with gauge
  • reduce the effect of vibration
  • polished diaphragm provides best hygiene factor
  • standard followed EN 837-3
Application
  • Especially   Design   For   Sanitary   Application
  • Pharmaceutical
  • Paint Industry
  • Bacterial And Fungal Accumulates Which  Contaminate The Process Are  Eliminated
  • The Miror Finishing Of Components Assures The Best Hygiene
Download Datasheet pdf-icon Send Inquiry

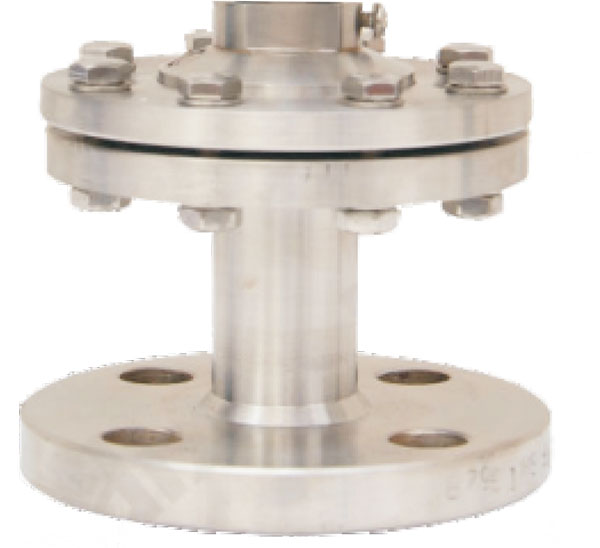

Diaphragm Sealed Direct Flanged With Coupled Sealed

Special Features
  • Welded diaphragm
  • Most suitable for slurry & corrosive service
  • Flushing ring, flange & diaphragm are Available in various type of ss & exotic materials
Application
  • Diaphragm seals are provided in the instruments like pressure Gauges, switches, transmitters in order to isolate the sensing Element from the main service due to its corrosive, viscous and Sedimented nature and to avoid clogging and solidification.
  • These kind of seals are widely used in the viscous & corrosive services where flushing is required periodically & frequently
Download Datasheet pdf-icon Send Inquiry

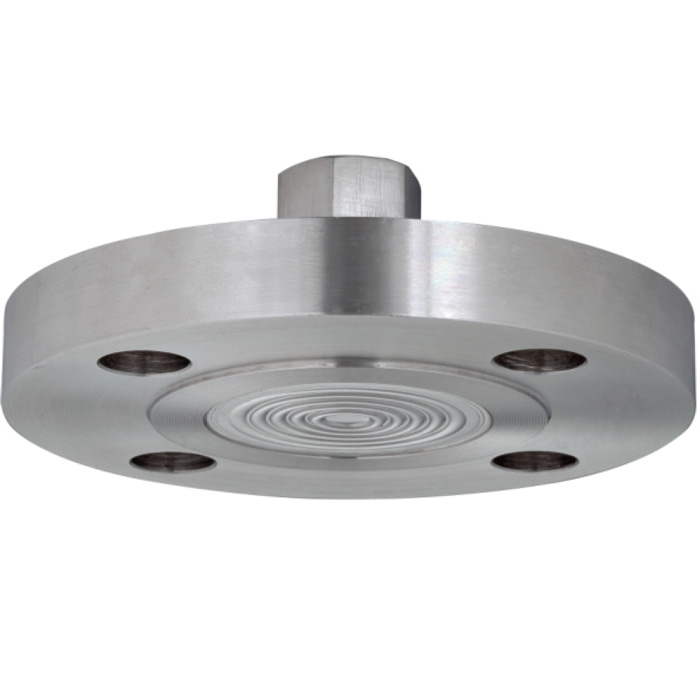

Diaphragm Sealed Screwed Flush Type

Special Features
  • Ideal for pressure transmitter
  • Laser welded diaphragm
  • One piece AISI 316 SS construction
  • Flush diaphragm
Application
  • Diaphragm seals are provided in the instruments like pressure gauges, switches, transmitters in order to isolate the sensing element from the main service due to its corrosive, viscous and sedimented nature and to avoid clogging and solidification
Download Datasheet pdf-icon Send Inquiry

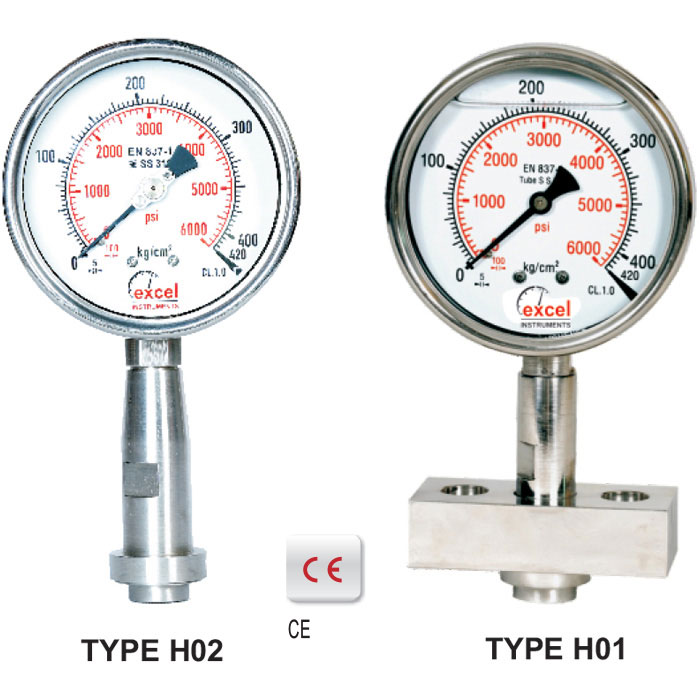

Homogenizer Pressure Gauge Diaphragm type

Special Features
  • CE Approved electrical contacts
  • Laser welded diaphragm
  • Filled version facilitate usage in vibration Zones to avoid damages to its mechanism.
  • Suitable for homogenizer machines.
  • Electrical contact options available.
  • Standard followed in general EN 837-3.
Application
  • These gauges are being used in applications where Hygiene is of prime importance like dairy
  • Food
  • Ice cream
  • Beverages
  • Pharmaceutical industries
  • Sterilization.
Download Datasheet pdf-icon Send Inquiry

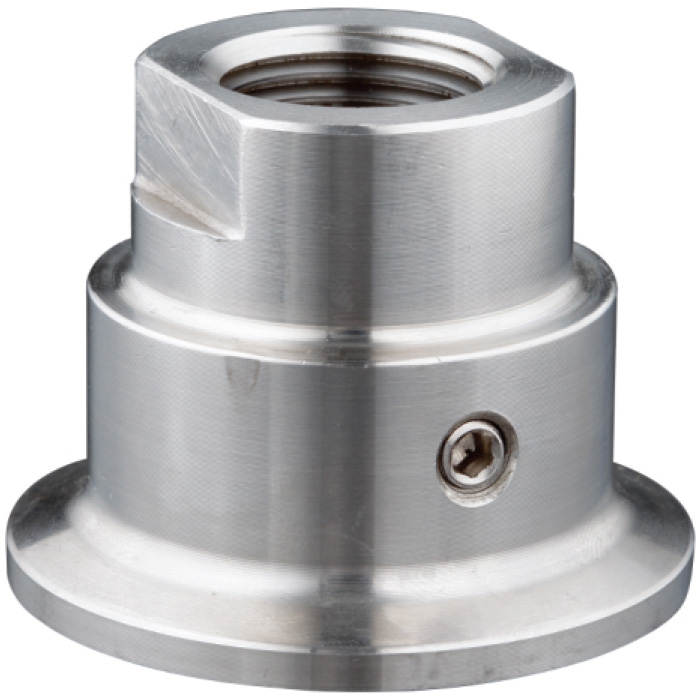

Diaphragm Seal Sanitary Seal(Clamp Type/)

Special Features
  • Laser Welded Flush Diaphragm
  • Quick Connect/Disconnect For Easy Cleaning
  • Suitablr For Full ,Diary And Pharma Industries
Application

  • Diphragm Seal Are Provided In The Instrument Like Pressure Gauges,Switches, In Order To Isolatet The Sensing Element From The Main Service Due To Its Corrosive,Viscous And Sendimented Nature And To Avoid Dogging And Solidification.These Seals Are Used In Hygein Apllication Where Purity In Process Is Essential -Typically In Food,Diary Beverages And Pharmaceutical Industry
