Low Pressure Gauges

Download Datasheet pdf-icon Send Inquiry

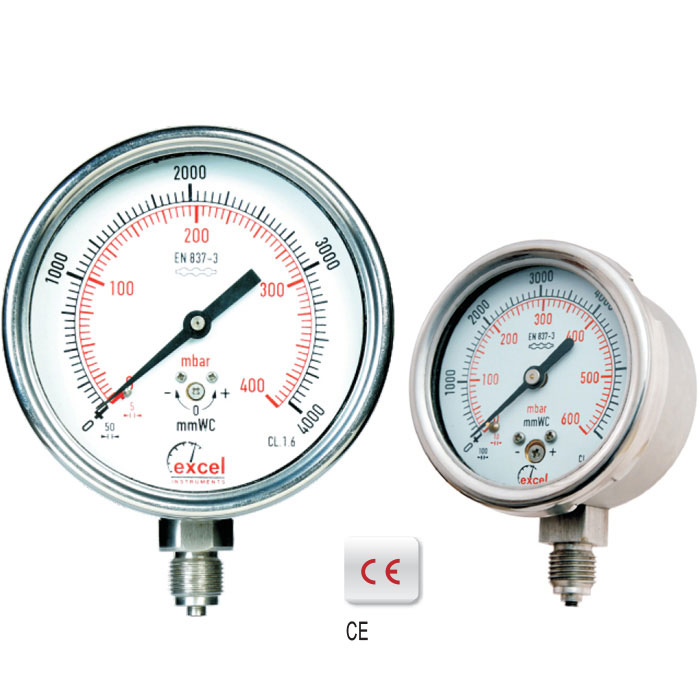

CC4

All SS (SS 304) Pressure Gauge Capsule type

CC6

All SS (SS 316) Pressure Gauge Capsule type

Special Features
  • Stainless steel case & ring
  • Available ranges : 10 mbar to 1000 mbar
  • Compact design
  • Provision for zero adjustment
  • Standard followed in general EN 837-3
Application
  • Low pressure draft measurment
  • Food & berverages.
  • Pharmaceutical
  • Breweries
  • Conventional
  • Nuclear power plants
  • Clean air
  • Gaseous
  • Low viscous liquid & non corrosive media that will not obstruct the pressure system.
Download Datasheet pdf-icon Send Inquiry

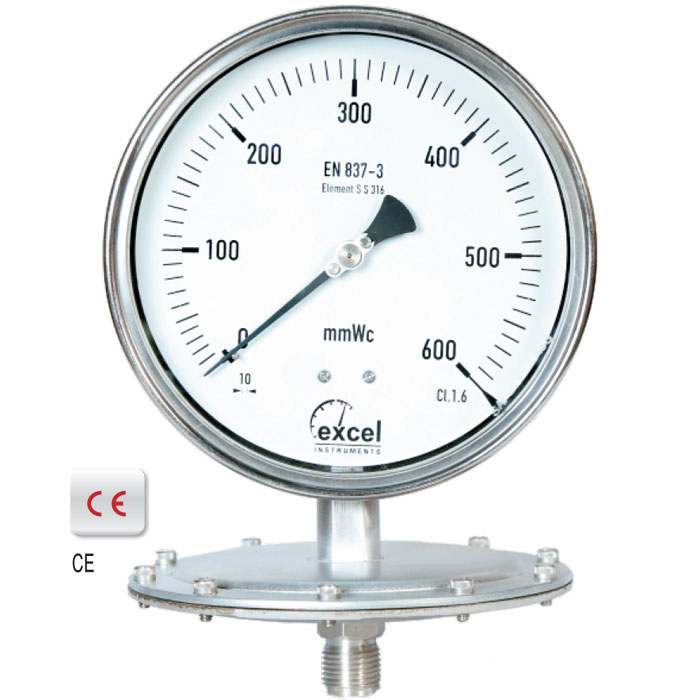

LPD

All SS Pressure Gauge Low Pressure Diaphragm Type

Special Features
  • Stainless steel case & measuring system
  • Selectable ranges from 0 to 250 mmwc to Max. 6000 mmWC Pressure and Vacuum
  • Flanged or screwed connection
  • Syandard followed in general EN 837-3
  • CE approved electrical contacts
Application
  • Suitable for clean air
  • Corrosive environments & Gaseous or non crystallized liquid media that will not obstruct the pressure system.
Download Datasheet pdf-icon Send Inquiry

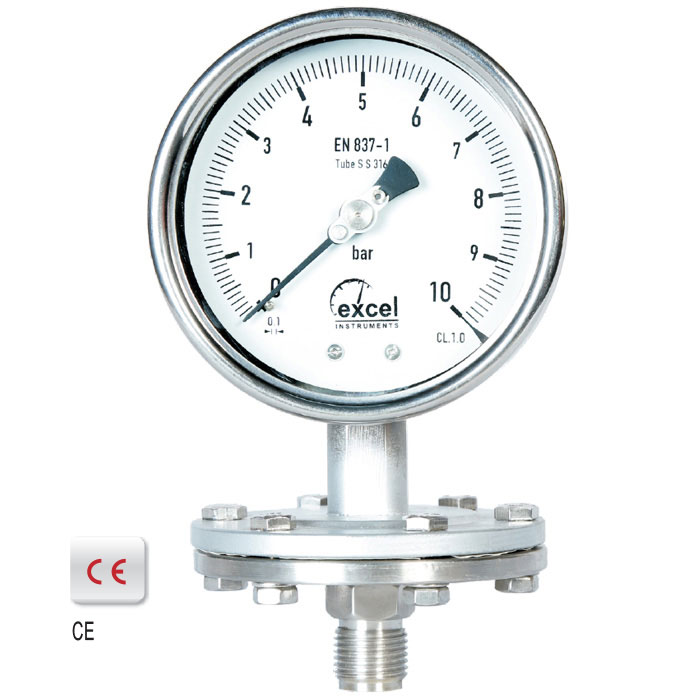

SCH

All SS Press Gauge Schaffer Diaphragm Type Pressure Gauge

Special Features
  • Stainless steel case & measuring system
  • Selectable ranges from -1  to 14 Bar Pressure and Vacuum & Compound
  • Flanged or screwed connection
  • Standard followed in general EN 837-3
  • CE approved electrical contacts
Application
  • Suitable for clean air
  • Corrosive environments & Gaseous or non crystallized liquid media that will not obstruct the pressure system.
